Product Datasheet Search Results:

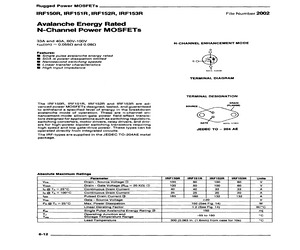

5 Pages, 205 KB, Scan- IRF150R
- Harris Semiconductor
- Power MOSFET Data Book 1990
1 Pages, 41 KB, Original- IRF150R
- International Rectifier
- Rugged Series Power MOSFETs - N-Channel

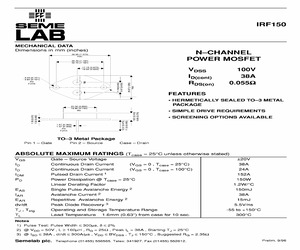

2 Pages, 74 KB, Scan- IRF150R1
- Semelab Plc.
- 38 A, 100 V, 0.055 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-3
Product Details Search Results:
Semelab.co.uk/IRF150R1
{"Terminal Finish":"TIN SILVER COPPER","Terminal Form":"PIN/PEG","Avalanche Energy Rating (Eas)":"150 mJ","Package Shape":"ROUND","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"METAL","Transistor Element Material":"SILICON","Drain Current-Max (ID)":"38 A","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Drain-source On Resistance-Max":"0.0550 ohm","Transistor Type":"GENERAL PURPOSE POWER","Pulsed Drain Current-Max (IDM)":"152 A","Channel Type":"N-CHANNEL","FET Technology":"METAL-OXIDE SEMIC...
1445 Bytes - 23:18:42, 18 May 2025

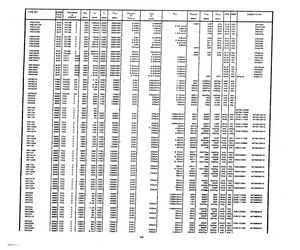

Various/IRF150R
{"C(iss) Max. (F)":"2.0n","Absolute Max. Power Diss. (W)":"150","g(fs) Max, (S) Trans. conduct,":"11","I(D) Abs. Max.(A) Drain Curr.":"25","@V(GS) (V) (Test Condition)":"10","t(d)off Max. (s) Off time":"125n","r(DS)on Max. (Ohms)":"55m","@V(DS) (V) (Test Condition)":"25","I(DM) Max (A)(@25°C)":"160","I(GSS) Max. (A)":"100n","g(fs) Min. (S) Trans. conduct.":"9.0","V(BR)GSS (V)":"20","@I(D) (A) (Test Condition)":"20","@Freq. (Hz) (Test Condition)":"1M","V(GS)th Max. (V)":"4","V(GS)th Min. (V)":"2","Packa...
1294 Bytes - 23:18:42, 18 May 2025
